Daugelis automobilių turi neblogus originalius grotuvus, kurie dažnai net būna susieti su kitomis sistemomis. Retas iš mūsų važinėjasi su apynauju automobilių, tad nors ir originalūs grotuvai veikia puikiai, tačiau morališkai jie jau būna pasenę. Dažnai juk norisi groti muziką iš telefono, laisvų rankų įrangos be jokių laidų. Visas šias galimybes suteikia Bluetooth ryšys.
Nusprendžiau suprojektuoti ir pagaminti originalaus Ford grotuvo priedėlį, veikiantį kaip CD keitiklio emuliatorius. Per keletą mėnesių pavyko pasiekti tikslą.

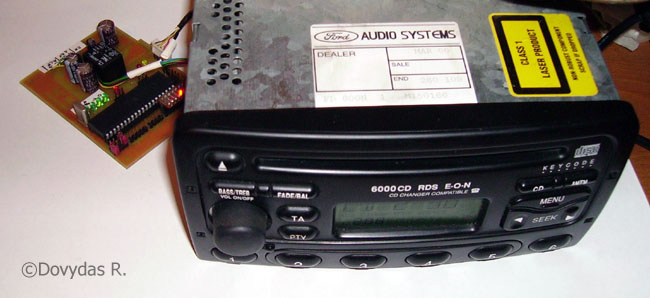

Sukurtas grotuvo priedėlis jungiasi į gamyklinio grotuvo CD keitiklio jungtį ir imituoja CD keitiklio darbą. Priedėlis be jokių modifikacijų suderinamas su gamykliniu Ford grotuvu Ford 6000CD RDS EON. Šis priedėlis turėtų veikti ir su kitais maždaug 1994 – 2004 metų Ford grotuvų modeliais, suderinamais su CD keitikliu (angl. CD changer compatible). Priedėlis gali būti valdomas (dainų perjungimas, pravarymas, skambučio valdymas, režimų keitimas) per originalų grotuvą ar vairo konsolę. Pagrindinė informacija (režimas ir kita) atvaizduojama taip pat originalaus grotuvo ekrane.
Panaudojau mikrovaldiklį AVR Atmega162. Šį mikrovaldiklį pasirinkau, nes buvo reikalingi du UART prievadai. Vienas UART prievadas buvo panaudotas bendravimui su Ford grotuvu ACP protokolu, o kitas UART prievadas panaudotas bendravimui su Bluetooth moduliu.

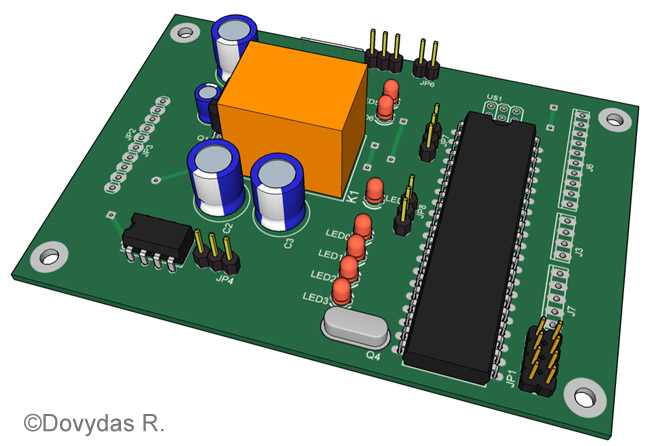

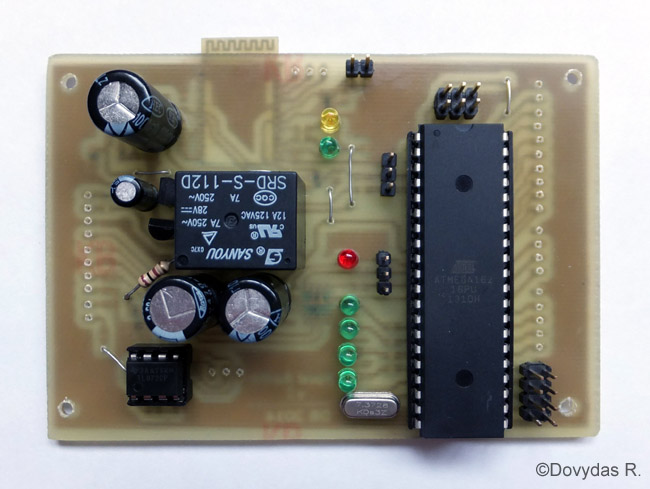

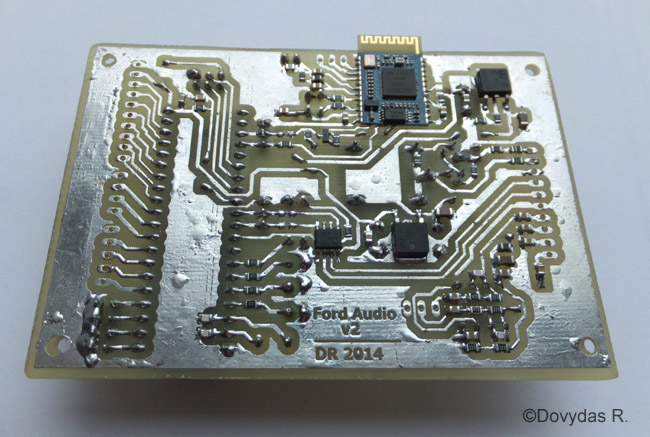

Žemiau pateikiau, kaip atrodo suprojektuota ir surinkta paskutinės (ketvirtoji) spausdintinės plokštės “Ford udio v2.0” versija, kurios matmenys labai kompaktiški (5 cm x 5 cm).
Bluetooth funkcijų realizavimui panaudojau anksčiau aprašytą BT BLK-MD-SPK-B modulį. Šis modulis valdomas AT komandomis.
Ford ACP yra tinklo protokolas naudojamas grotuvo komunikacijai su kitais įrenginiais. Šio protokolo fizinis lygmuo yra RS485, kurio duomenys perduodami 9600 bps greičiu po 9 bitus, be lyginumo bito bei naudojant 1 stop bitą (9600 9N1).
Įrenginys veikia puikiai ir leidžia naudotis originaliu grotuvų su išplėstu funkcionalumu.
Turėtų tikti šiems grotuvams:
- 4050RDS
- 4500
- 4600RDS
- 5000RDS
- 5000RDS EON
- 6000CD RDS
- 6000 MP3
- 7000RDS
Pabaigai, trumpas aprašymas anglų kalba.
Hi mate!
Do you sell those things also? That piece would make my mondeo just great because i really like the original stereo but the fact that it only supports CDs and radio makes me feel about it like i´m back in my early childhood(which is kinda cool for feeling somewhat nostalgic but seriously uncool for the fact that i´m not ablo to enjoy my music whenever i want) :p
Perhaps it is possible to make a device for sale.
Would be great. Alternatively i could try making my own since plugging in an iron and soldering stuff up isn’t something too far and unreachable for me too(i’ve worked bit as am electronics NPI process specialist). However i can’t figure out how to get the PCB printed. Have you ordered it somewhere or do you have some equipment for that?:)
PCB was made at home using photolithography technology.
Yet I am reluctant to publicize the project details like schematic, PCB, firmware. If you want to have this device now, purchase manufactured device, ready to use solution from me.
Maybe in the future all the information will be provided and you will be able to make it yourself 🙂
Alright, it would be more convenient for me too. Let’s talk about prices then !lol
I think that 100 euros price for ready to use device would to be a reasonable price.

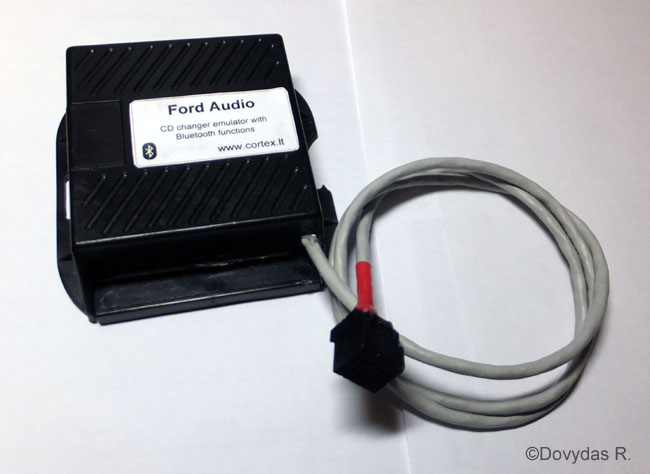

The device would be mounted in a plastic case.
Device installation is simple: you just need to connect to the CD changer connector at the end of head unit. This is all you need to do. Then the device can be used as it was demonstrated in the video.
Of course, head unit must be marked “CD Changer compatible”.
